Product DescriptionCompany Info.<>
- Brand:
- Shengxi
- Model:
- FB-3000N

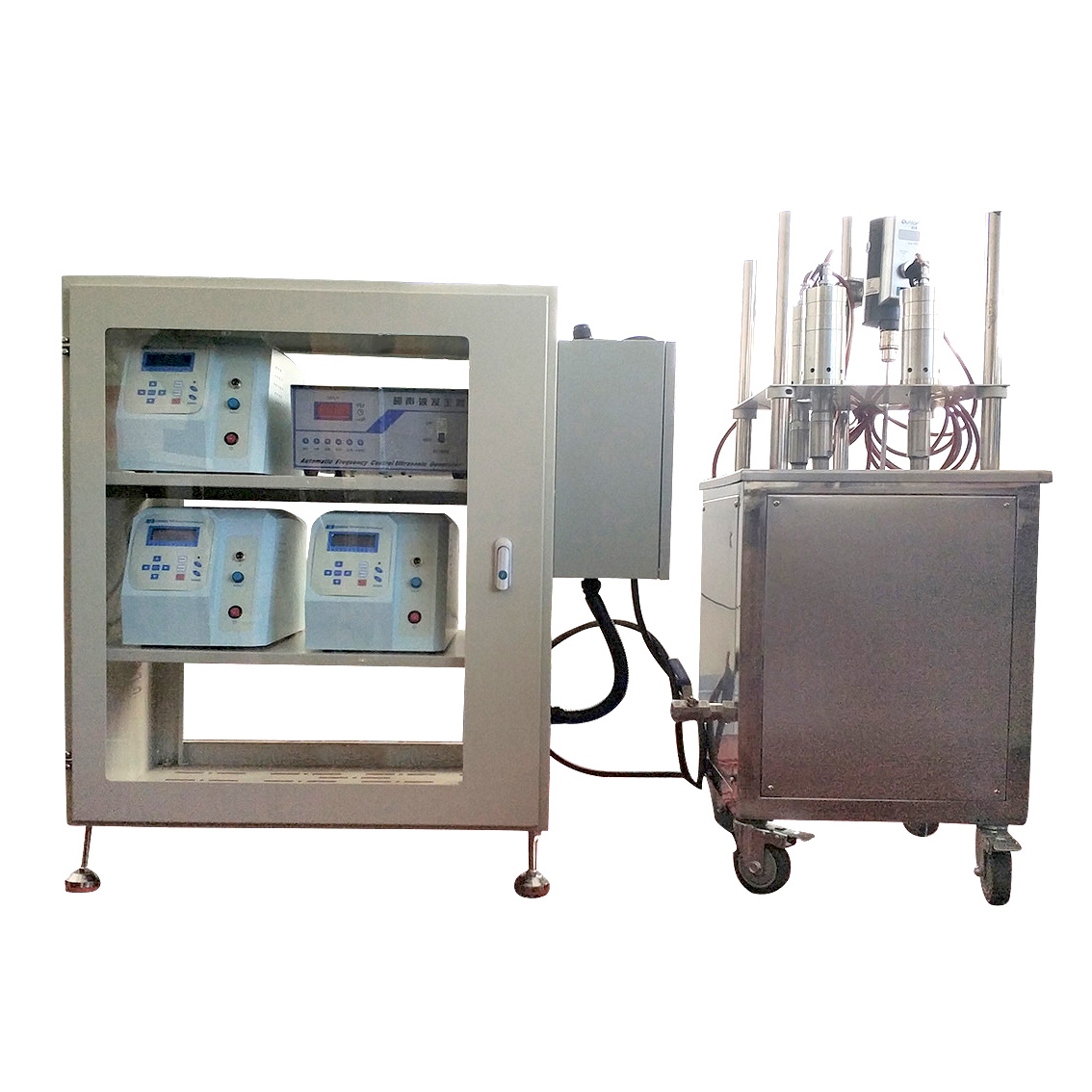

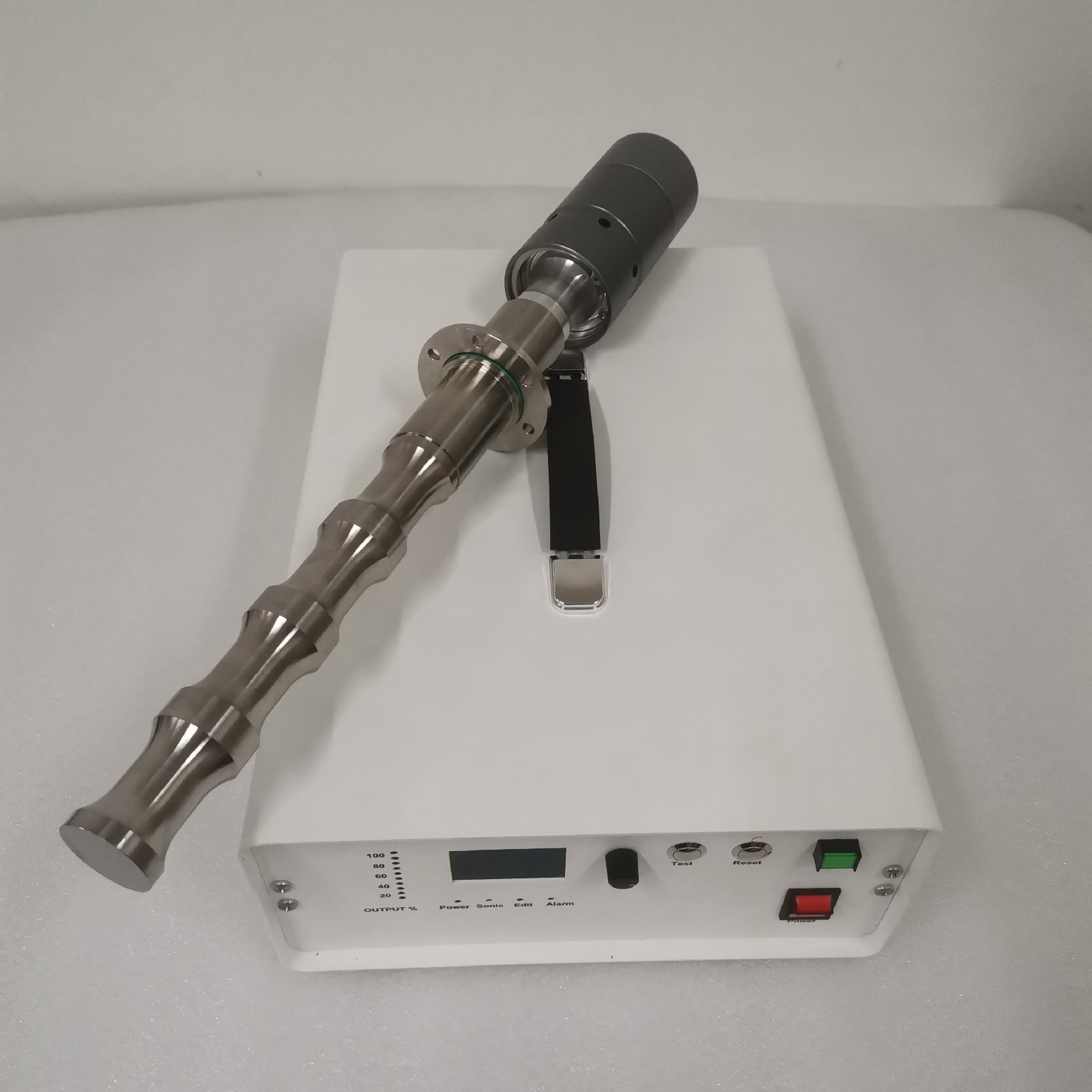

FB-3000N Ultrasonic Processor
Product Overview
The ultrasonic processor is one of the commonly used devices for laboratory sample pretreatment, and is widely applied in fields such as the nanotechnology industry, biology, chemical engineering, pharmaceuticals, dyes, optics, jewelry, aerospace, hardware, and automobile manufacturing.Main Applications
- Extraction of traditional Chinese medicine, and disruption of cells, bacteria, and viral tissues. For example, the extraction of intracellular contents.
- Dispersion and homogenization of substance particles, as well as emulsification of products. For instance, the dispersion of nanomaterials (such as silicon dioxide, carbon dioxide, carbon nanotubes, and graphene).
- Accelerating dissolution and chemical reactions. For example, it is used in chemical synthesis.
Main Features
- Automatic resonance point and power control, eliminating the need for frequent manual energy adjustment.
- 99-hour process control timer to manage the total working time (range: 1 second to 99 hours), supporting real-time pause of the current running task.
- Working time display in a cumulative mode.
- On/off pulse timer:
- Automatic amplitude compensation, which ensures that the probe amplitude does not change with the load variation during the ultrasonic process.
- Sample overload/overtemperature protection device.
- Automatic frequency tracking and automatic fault alarm.
- Easy operation with direct key input.
Technical Parameters
- Model: FB-3000N
Net Power Output: 3000W
Power Adjustment: 20% - 100%
Frequency: 20KHZ
Host Dimension: 230×370×225 (mm)- Timer: LCD display, adjustable range from 1 second to 99 hours
- Piezoelectric Variable-Frequency Energy Converter:
Material: PZT (Lead Zirconate Titanate) piezoelectric ceramic
Diameter: 73mm
Length: 163mm
Cable Length: 200cm- Standard-Configured Horn:
Head Diameter (randomly provided horn): 40mm
Processing Capacity: 5-10L
Total Length: Range of 290-600mm
